Licensing, Telemetry and Pricing Overview
The Xorble Key Storage Provider (KSP) for Azure Key Vault is licensed through the Microsoft Azure Marketplace using a SaaS-based consumption model. Rather than purchasing fixed server licences, customers are billed based on the resources used by servers running the KSP. To calculate licensing and billing, the KSP periodically submits a small amount of operational telemetry, including hardware capacity and product configuration information. This telemetry is used exclusively to validate subscriptions, measure consumption, support billing, and ensure the service is operating correctly. This page explains the licensing model, the telemetry collected, pricing calculations, and how to subscribe to and manage your Xorble Marketplace subscription.
Free Evaluation Period
The Xorble Key Storage Provider (KSP) for Azure Key Vault includes a 31-day tenant-wide evaluation period. The evaluation is associated with the Microsoft Entra tenant rather than an individual server or virtual machine, allowing organisations to assess the KSP across multiple systems within the same tenant during the trial period.
During the evaluation period, the KSP operates with full functionality, enabling validation of deployment, integration, performance, certificate lifecycle operations, and PKI workflows before moving to a paid subscription.
The 31-day evaluation period begins when the first KSP installation within the tenant is activated. Only a single evaluation period is available per tenant, regardless of the number of servers or virtual machines using the KSP.
To continue using the product after the evaluation period expires, a valid Xorble Key Storage Provider for Key Vault Azure Marketplace subscription must be created and activated. If a valid subscription is not available when the evaluation period ends, the KSP will cease operating until licensing has been configured.
Customers are therefore encouraged to create and configure their Azure Marketplace subscription during the evaluation period to ensure uninterrupted service when transitioning to production use.
The configuration utility now displays the subscription status for the tenant in the bottom left of the window. The following are examples showing a subscribed tenant with valid license (shown highlighted in green) and an expired trial version (show highlighted in red):
Xorble and Azure SaaS Marketplace
After setting up your subscription to the Xorble SaaS Offer for the KSP, you can see the Subscription information in the Xorble SaaS portal at https://xorble-mart-portal.azurewebsites.net/
Use of the KSP is metered every hour with pricing based on the number of logical processors (vCores), RAM and whether Certificate Services and NDES are installed. Telemetry is collected approximately every 30 minutes and aggregated into hourly usage records for billing purposes. Telemetry includes the Entra tenant Id, client Id, client version, processor architecture, number of logical processors (vCores), total RAM (MB) and whether Certificate Services and NDES are installed.
The following table shows the expected costs for the KSP per hour based on core and RAM usage. The first two rows are for servers running PKI Roles (AD CS or NDES) and the last two roles are costs for other server types.
|
$/hour |
|
|
PKI Core Cost |
0.05019 |
|
PKI RAM Cost |
0.00240 |
|
Core Cost |
0.01004 |
|
RAM Cost (GB) |
0.00048 |
Subscribe to Xorble Key Storage Provider for Key Vault within Azure Marketplace
The Xorble Key Storage Provider for Key Vault SaaS Resource provides a mechanism to collect telemetry and bill usages of the KSP.
When the KSP is used without a corresponding SaaS resource then it will run in a trial mode for 4 weeks and then when the trial expires will cease to function (you may see error 15861 logged when this happens). Therefore, the SaaS Resource needs to be created and configured before the end of the trial period of the KSP.
Only a single Xorble SaaS resource is required for all virtual machines used within a Entra tenant. It is important to understand that a single Xorble SaaS resource will be used for all virtual machines across the entire tenant regardless of how many VMs use the KSP.
High level approach is as follows:
- Create new empty Resource Group for Xorble KSP4KV SaaS
- Search for Xorble Key Storage Provider for Key Vault SaaS Resource in marketplace
- Create new Xorble SaaS resource from the Azure Marketplace
- Wait for the confirmation email
- Configure the new account
Subscribe to Xorble Key Storage Provider for Key Vault for Azure CSP Customers
If you purchase your Azure via Cloud Solution Providers (CSP) then please contact us with details of the CSP including CSP name, CSP Identity GUID and details to configure a private offer for the service.
Create new empty Resource Group for Xorble KSP4KV

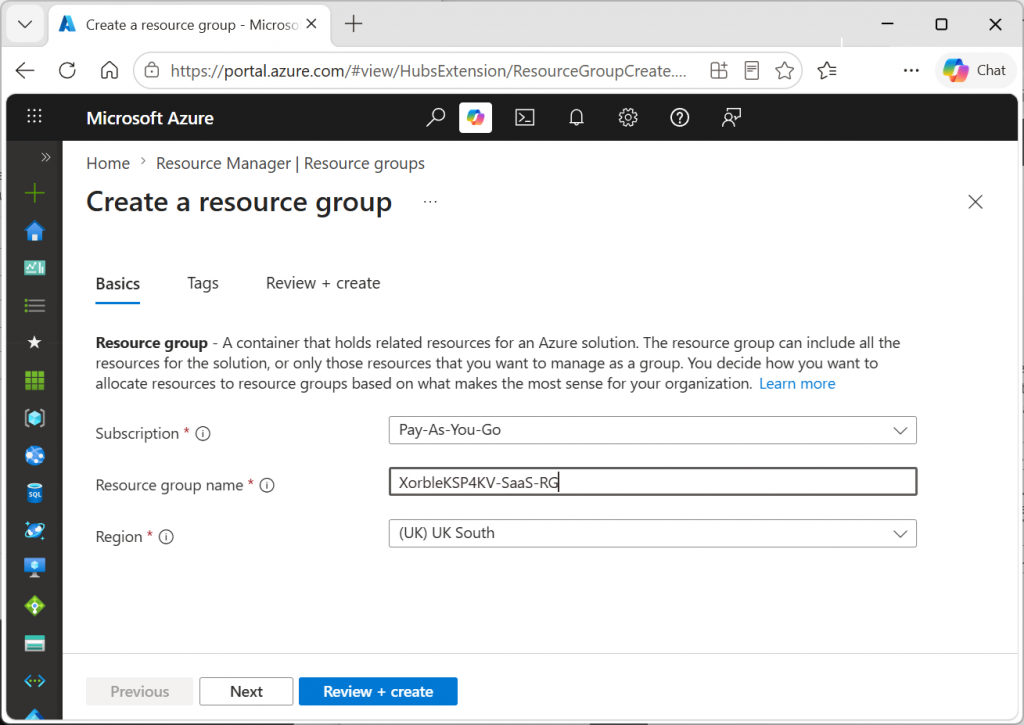

It is recommended to create a new Resource Group for the Xorble SaaS offering to make managing permissions and tracking billing data easier. Create a new Resource Group as shown below:
Direct Xorble SaaS Marketplace link
Search for Xorble SaaS in Marketplace

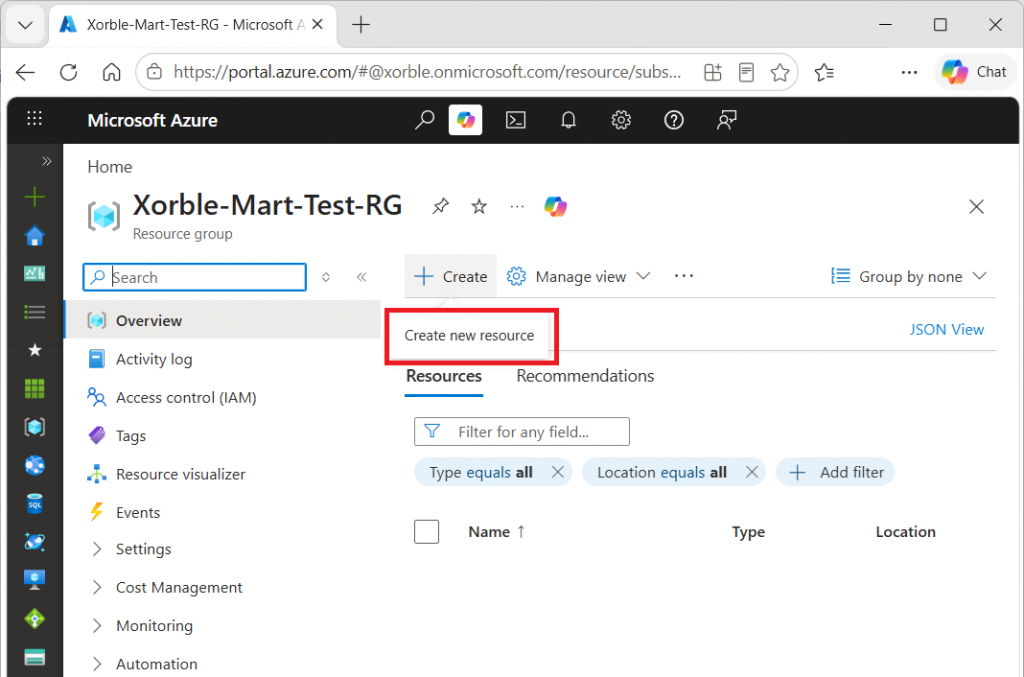

After creating a Resource Group, select “Create new resource” within the Resource Group:

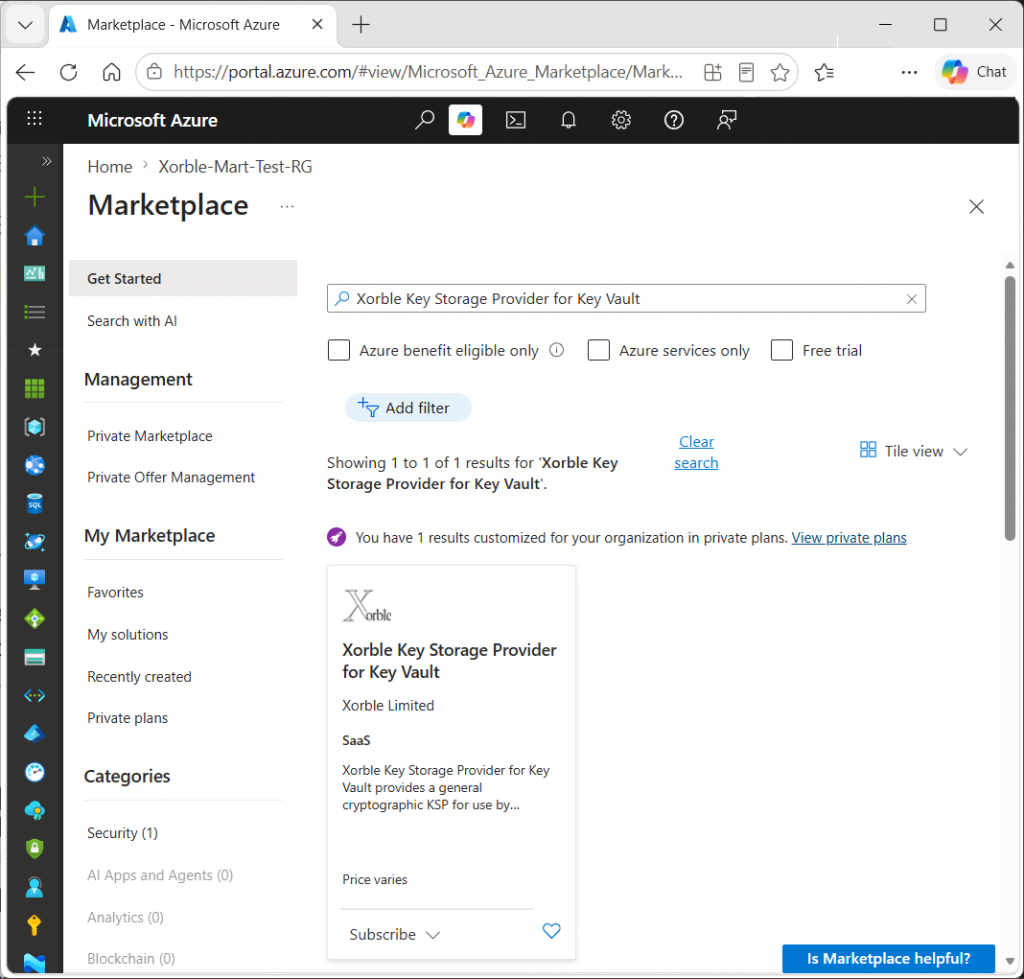

Then search for the Xorble SaaS offering in the marketplace using the name Xorble (the full name is Xorble Key Storage Provider for Key Vault) as shown below:
Create new resource from the Azure Marketplace

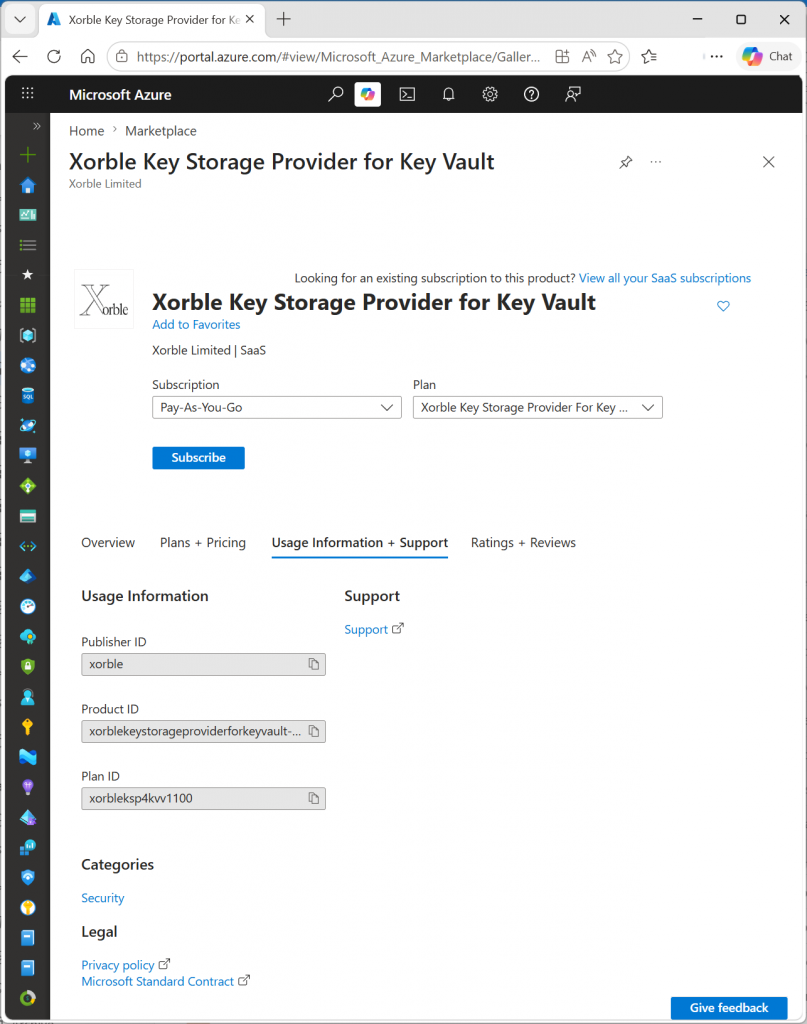

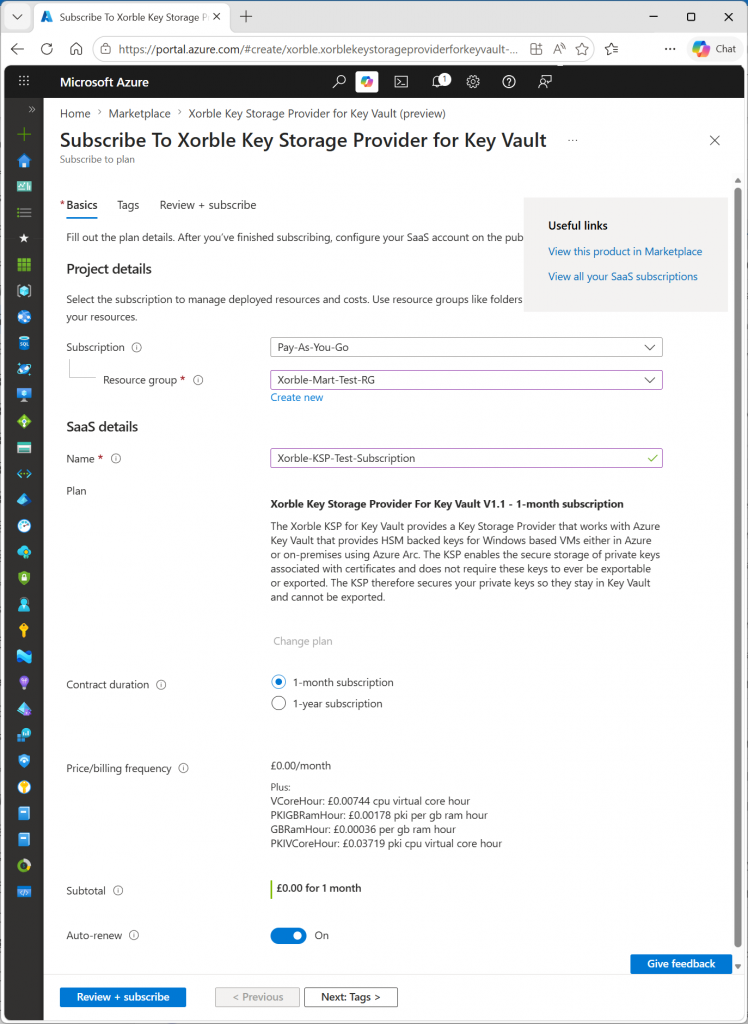

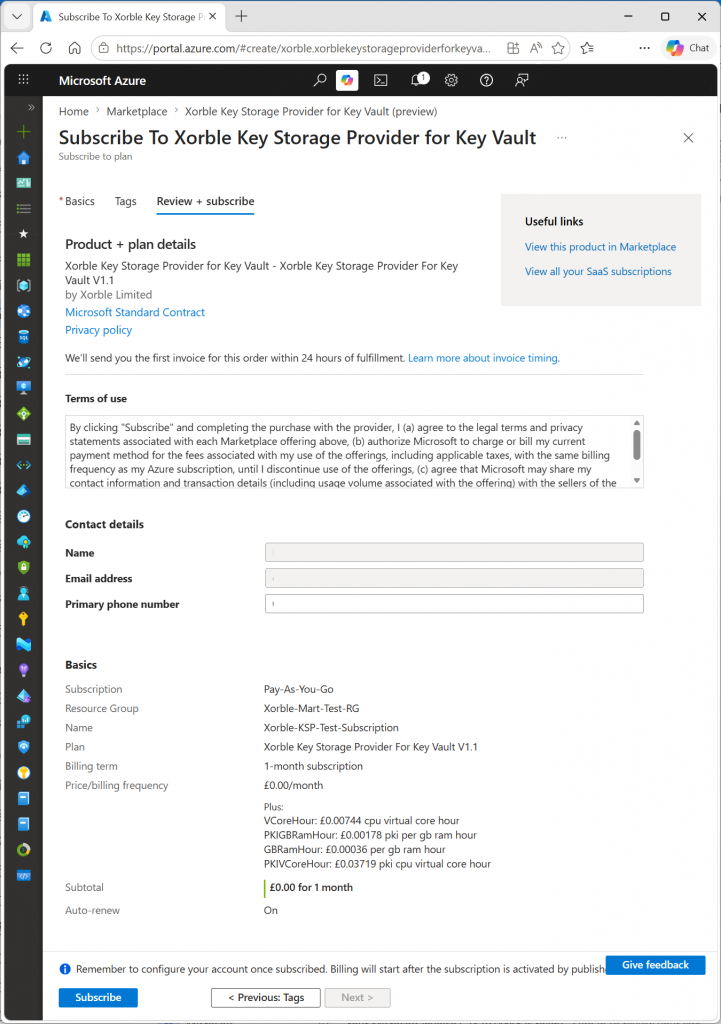

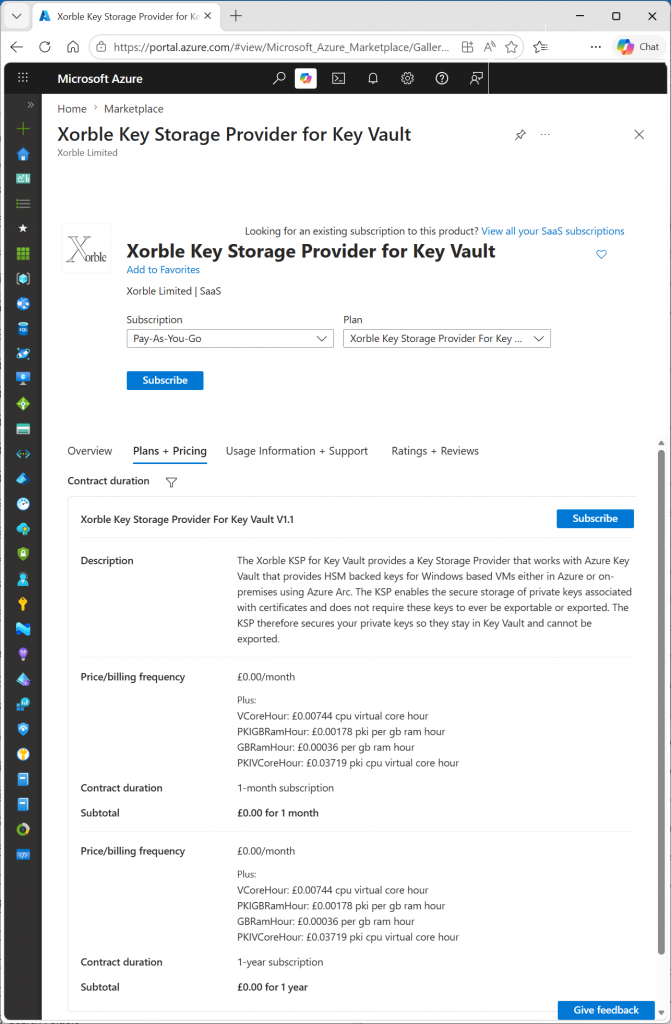

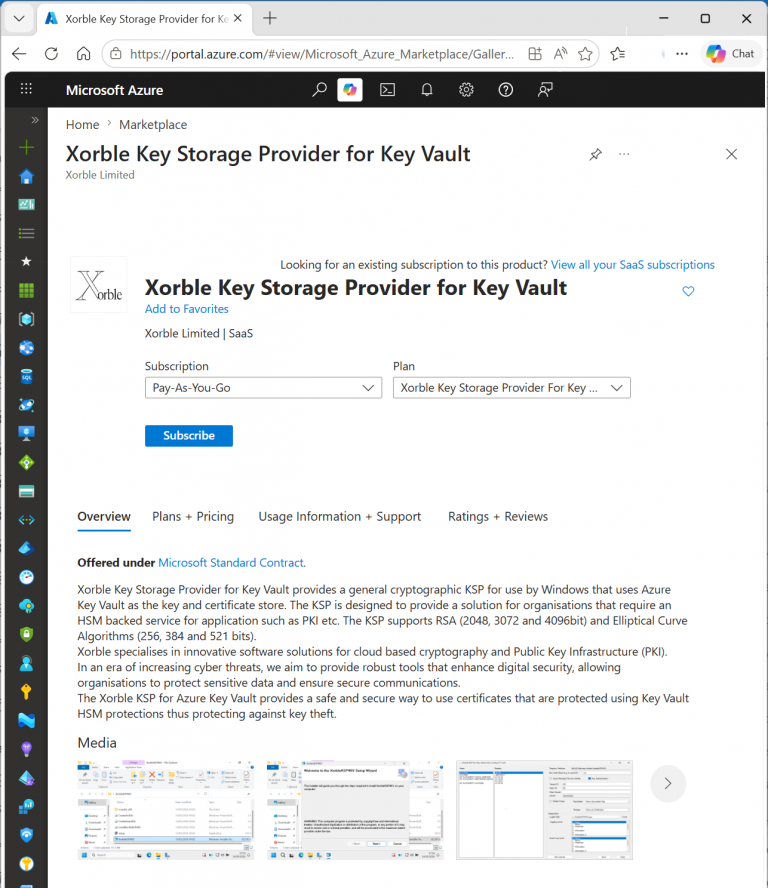

Select Subscribe within the marketplace to create a new Xorble Key Storage Provider for Key Vault SaaS Resource. The following screen shots show the process from Overview, Plans and Pricing, Usage Information and Support, Review and Subscribe:
Configure the new account
Configure your new account via Azure Portal

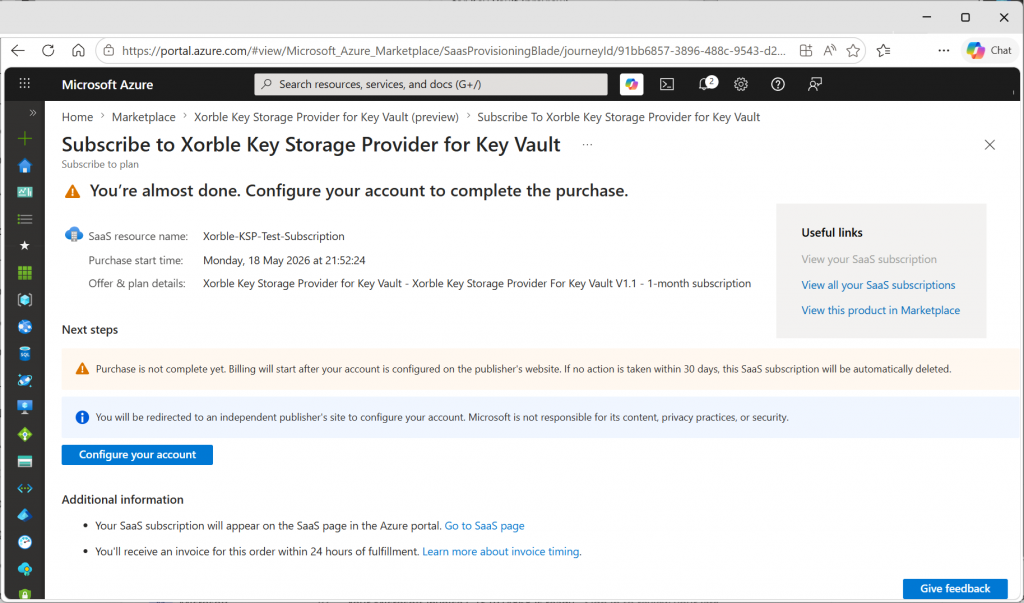

Select the Configure your account link in the Azure portal:
Configure your Account via Email

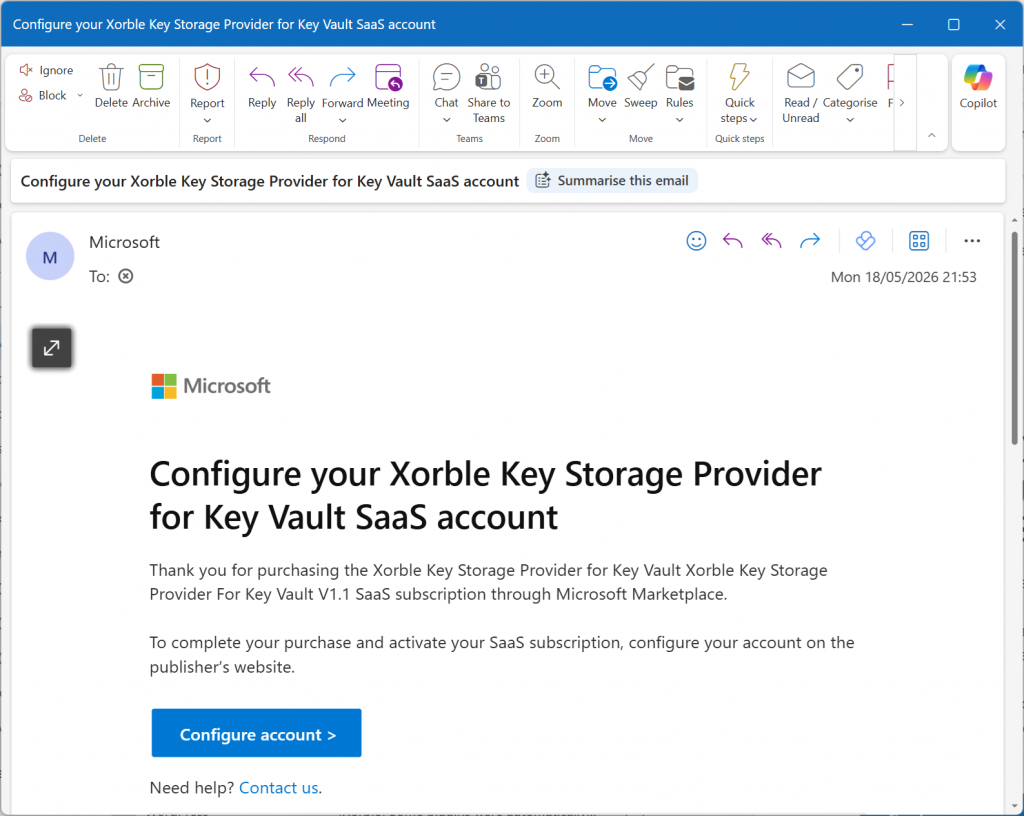

Alternatively select the link in the sent email:
Subscribing to the New Account

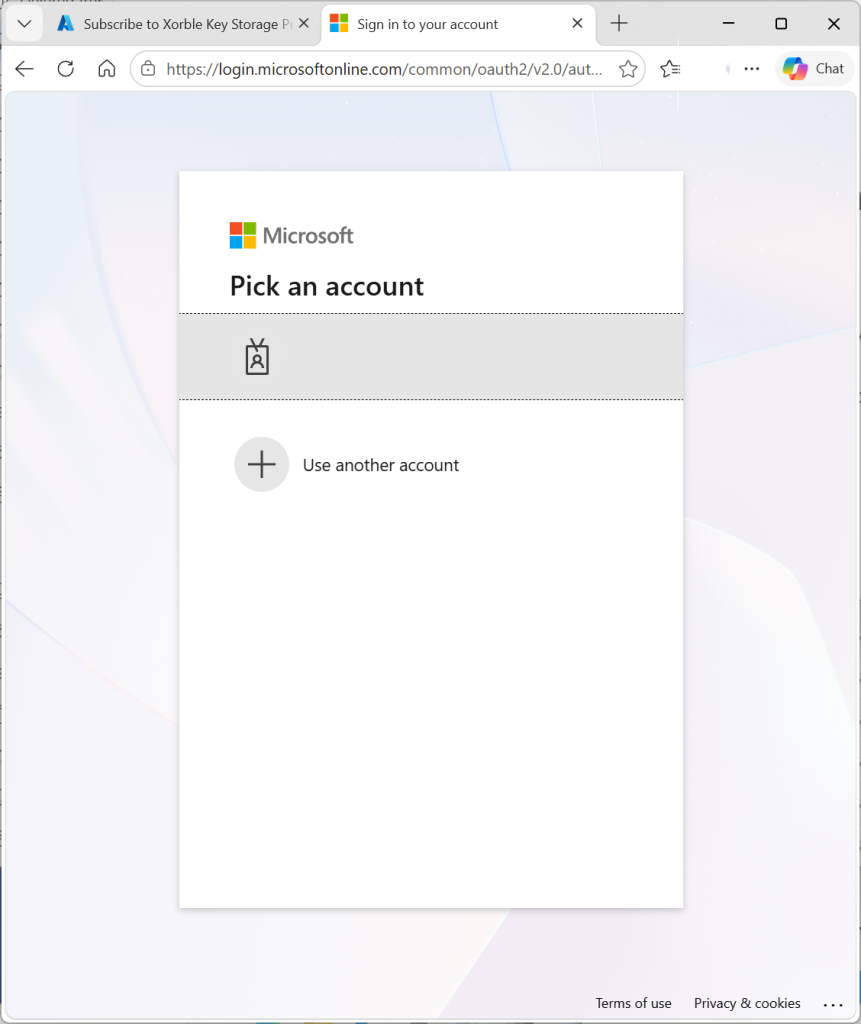

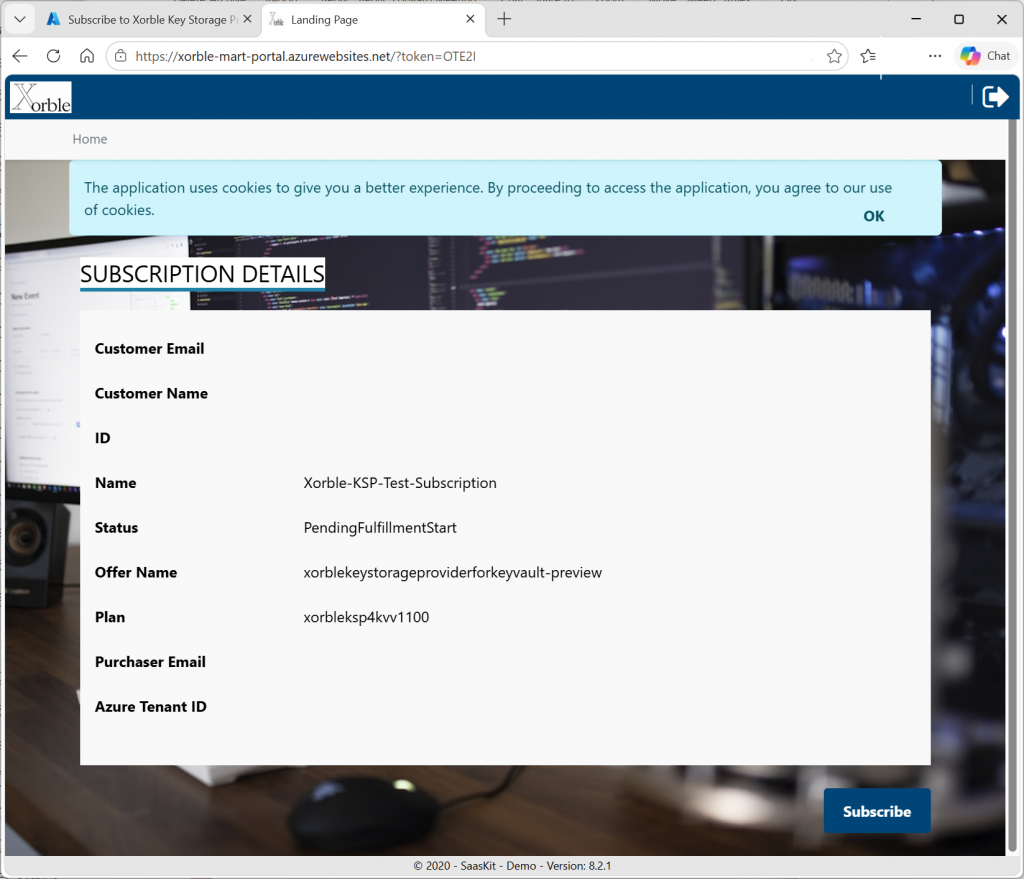

The links will take you to https://xorble-mart-portal.azurewebsites.net to complete the new account Subscription. You will need to authenticate against the portal and approve access. This will then take you to the landing page where you can finally Subscribe to the SaaS Offer as shown below:
Processing of this subscription should take a few seconds. After processing, the Subscription should update to the “PendingActivation” state as shown below. After this is done Xorble support will approve the Subscription.
Azure Key Vault Pricing and Costs
All costs associated with the Key Vault itself will be paid direct to Microsoft as with any other Key Vault. Key Vault costs are documented at https://azure.microsoft.com/en-us/pricing/details/key-vault/ and not repeated here.
